Quote Services Evolution: Local Enhancements, External Integration, and Quote Aggregator Architecture

TL;DR

The quote service ecosystem has undergone a major architectural evolution with three key components now working in concert:

1. Local Quote Service Enhancements: Intelligent pool quality management with liquidity-based classification, rogue pool detection, progressive recovery, and dynamic refresh priorities - all delivering sub-2ms quote selection
2. External Quote Service: Integration with Jupiter, DFlow, and OKX quote providers for external market pricing with circuit breaker protection and health monitoring
3. Quote Aggregator Service (Work in Progress): Real-time merging of local and external quotes with confidence scoring, oracle-based price comparison, and decision recommendations for optimal execution

Table of Contents

1. Architecture Overview
2. Local Quote Service Enhancements
3. External Quote Service
4. Quote Aggregator Service
5. Metrics and Observability
6. Impact and Next Steps

Architecture Overview

The quote service ecosystem now consists of three specialized services working together:

┌────────────────────────────────────────────────────────────────┐
│                     Quote Service Ecosystem                    │
└────────────────────────────────────────────────────────────────┘

  ┌─────────────────────┐          ┌─────────────────────┐
  │  Local Quote Svc    │          │ External Quote Svc  │
  │  (Port 50052)       │          │ (Port 50053)        │
  ├─────────────────────┤          ├─────────────────────┤
  │ • Pool Quality Mgmt │          │ • Jupiter API       │
  │ • Oracle Validation │          │ • DFlow API         │
  │ • Dynamic Refresh   │          │ • OKX API           │
  │ • WebSocket-First   │          │ • Circuit Breaker   │
  │ • 400+ Pools        │          │ • Health Tracking   │
  │ • <2ms Selection    │          │ • Rate Limiting     │
  └──────────┬──────────┘          └──────────┬──────────┘
             │                                │
             │    gRPC Streaming              │
             │    StreamBatchQuotes           │
             └────────────┬───────────────────┘
                          │
                          ▼
             ┌────────────────────────┐
             │  Quote Aggregator Svc  │
             │  (Port 50051)          │
             ├────────────────────────┤
             │ • Real-time Merging    │
             │ • Confidence Scoring   │
             │ • Oracle Comparison    │
             │ • Best Quote Selection │
             │ • NATS Event Publish   │
             └────────────┬───────────┘
                          │
                          ▼
              ┌──────────────────────┐
              │   Scanner Service    │
              │   (TypeScript/Rust)  │
              └──────────────────────┘

Design Principles:

• Separation of Concerns: Each service has a single, well-defined responsibility
• Parallel Sourcing: Local and external quotes fetched simultaneously
• Intelligent Aggregation: Confidence-weighted selection with oracle validation
• Real-time Updates: WebSocket-first for local pools, API polling for external
• Observable: Comprehensive Prometheus metrics at every layer

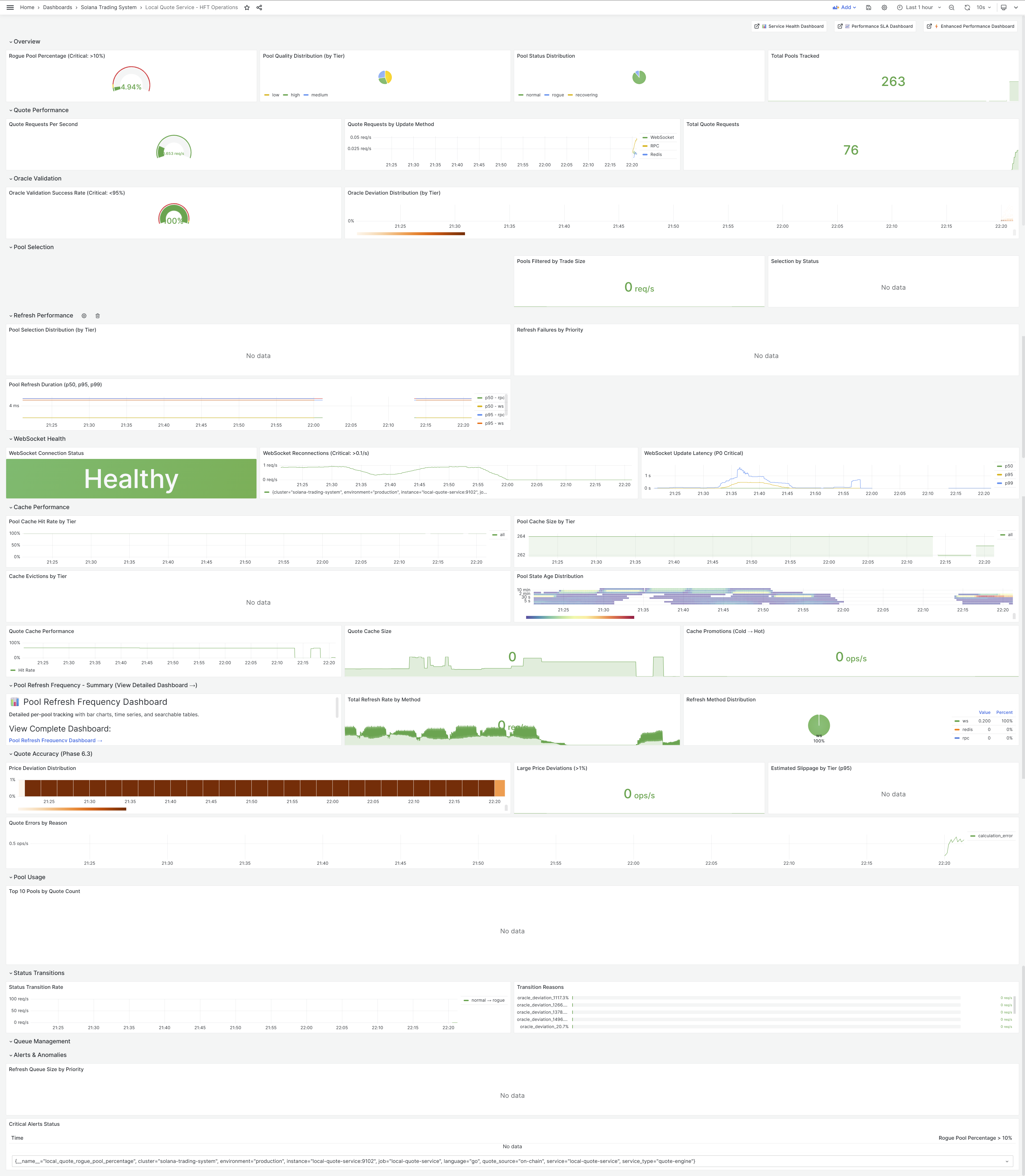

Local Quote Service Enhancements

Pool Quality & Priority Management

The local quote service has been enhanced with a comprehensive pool quality management system that intelligently classifies pools, detects rogue pricing, and dynamically adjusts refresh priorities.

Key Features

1. Liquidity-Based Classification

Pools are classified into three tiers based on Solscan-enriched TVL data:

• High Liquidity (>$100k): ~50 pools - large trades (100+ SOL)
• Medium Liquidity ($10k-$100k): ~150 pools - medium trades (10-100 SOL)
• Low Liquidity ($500-$10k): ~200 pools - small trades (1-10 SOL)

This classification enables intelligent pool selection based on trade size, automatically filtering pools where the trade would exceed 20% of pool liquidity to prevent high slippage.

2. Rogue Pool Detection & Recovery

Oracle Price Validation: Every pool price is validated against Pyth Network oracle prices via NATS events.

Detection Mechanism:

• Pools with price deviation > ±20% from oracle are flagged as “rogue”
• 2-strike rule: Two consecutive bad quotes trigger rogue status
• State machine: Normal → Rogue → Recovering → Normal

Progressive Recovery:

• 1st good quote: Transition to “Recovering” status
• 2nd consecutive good quote: Restore to “Normal” status
• Automatic tracking of all status transitions with reasons

3. Dynamic Priority Refresh

Variable Refresh Intervals based on pool quality:

• Highest Priority (5s): Low liquidity + normal status (most volatile)
• High Priority (10s): High liquidity + normal status
• Medium Priority (15s): Medium liquidity + normal status
• Low Priority (60s): Rogue pools (minimal resources)

WebSocket-First Architecture:

• All major Solana DEX protocols support WebSocket accountSubscribe
• Real-time updates for Raydium AMM/CPMM/CLMM, Orca Whirlpool, Meteora DLMM
• RPC fallback only for connection failures or health checks

4. Two-Stage Pool Selection

Stage 1: Liquidity Constraint Filter

• Calculate trade size in USD using oracle prices
• Filter pools where trade > 20% of pool liquidity
• Prevents high slippage on small pools

Stage 2: Weighted Random Selection

• Quality score = liquidityWeight × statusMultiplier
• High liquidity + normal status = highest probability
• Rogue pools = low but non-zero probability (redemption chance)

Performance: Sub-2ms pool selection overhead (exceeds target of <10ms)

Implementation Status

✅ All 6 Phases Complete (January 10, 2026)

Production Code: 2,694 lines (Go) Test Code: 573 lines (37+ test cases, 100% pass rate) Metrics: 31+ Prometheus metrics with automatic recording Dashboard: 10-row Grafana dashboard with 40+ panels Alerts: 10 Prometheus alert rules (P0/P1/P2)

Implementation Time: ~6 hours (42x faster than original 6-week estimate)

Key Metrics

Pool Quality Metrics:

• local_quote_pool_quality_total{tier,status} - Pool distribution by tier and status
• local_quote_rogue_pool_percentage - Percentage of pools flagged as rogue (alert: >10%)
• local_quote_status_transitions_total{from,to,reason} - State machine health

Oracle Validation:

• local_quote_oracle_validation_success_rate - Oracle validation success (alert: <95%)
• local_quote_oracle_deviation_percent - Price deviation from oracle

Pool Selection:

• local_quote_pool_selection_total{tier,status} - Selection distribution
• local_quote_pools_filtered_by_trade_size_total - Slippage protection in action

Refresh Priority:

• local_quote_refresh_queue_size{priority} - Queue health (alert: >100 for highest)
• local_quote_websocket_reconnections_total - WebSocket stability (alert: >0.1/s)

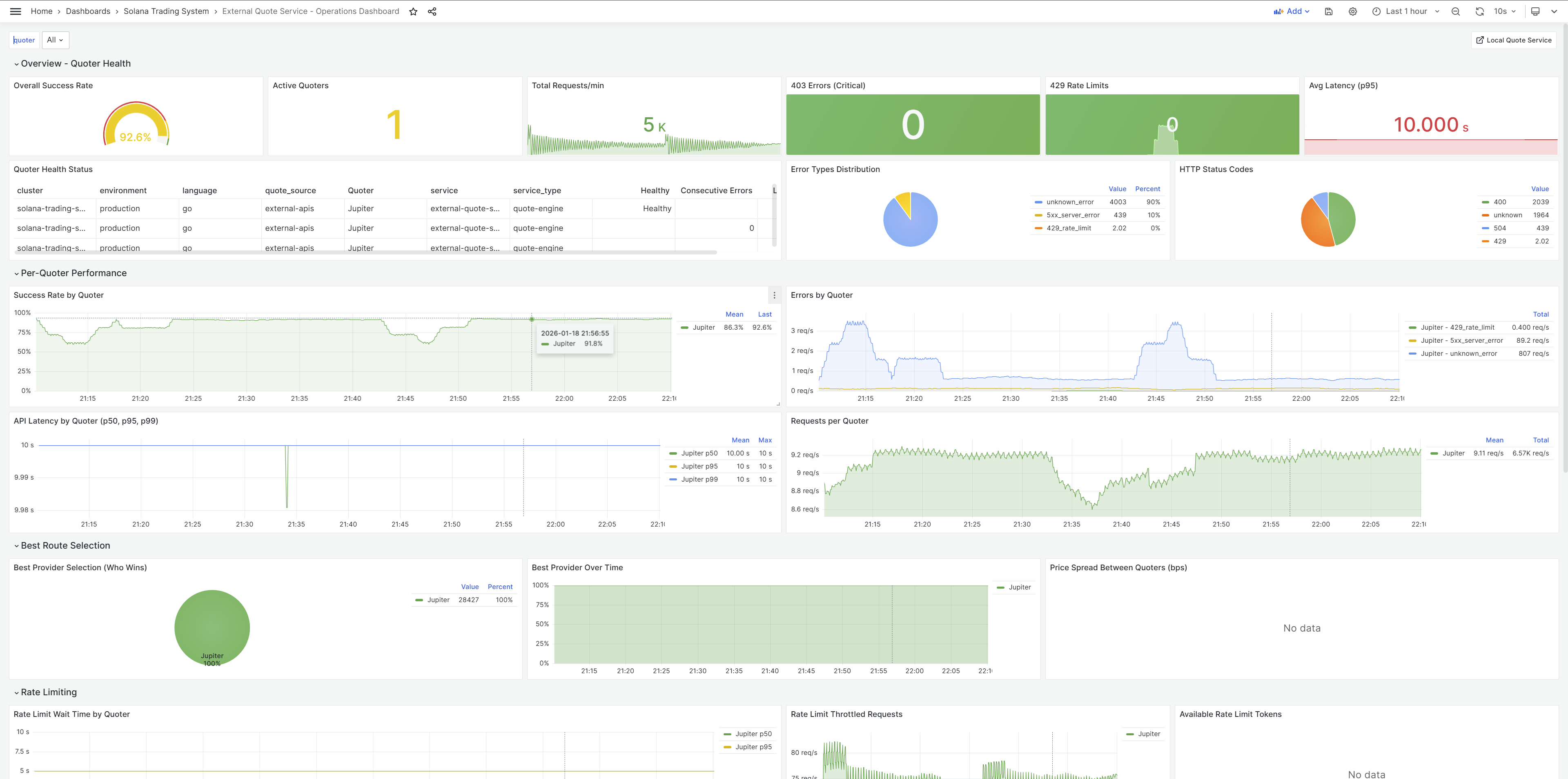

External Quote Service

The external quote service integrates third-party quote providers (Jupiter, DFlow, OKX) to complement on-chain pool data with aggregated market pricing.

Key Features

1. Multi-Provider Integration

Jupiter Integration:

• Primary quote provider for Solana DEX aggregation
• Rate limiting: 1 RPS shared across all Jupiter-based quoters
• Automatic retry with exponential backoff

DFlow Integration:

• Order flow auction protocol for better execution
• Circuit breaker pattern for failure isolation
• Health monitoring with uptime tracking

OKX Integration:

• Centralized exchange pricing for reference
• API key management and authentication
• Rate limit handling

2. Circuit Breaker Protection

Purpose: Prevent cascading failures when external providers are down

Thresholds:

• Open circuit after 5 consecutive failures
• Half-open state after 30s cooldown
• Close circuit after 3 successful requests

Metrics:

• external_quote_circuit_breaker_state{provider} - Current circuit state
• external_quote_circuit_breaker_trips_total{provider} - Total circuit trips

3. Health Tracking

Each provider tracks:

• Request count (success/failure)
• Average latency
• Uptime percentage
• Last successful request timestamp

Health Check Endpoint: GET /health

{
  "status": "healthy",
  "providers": {
    "jupiter": {
      "healthy": true,
      "requests": 12543,
      "errors": 23,
      "avg_latency_ms": 87,
      "uptime_percent": 99.82
    }
  }
}

Configuration

Command-Line Flags:

external-quote-service \
  -jupiter-api-url https://quote-api.jup.ag/v6/quote \
  -jupiter-rate-limit 1 \
  -dflow-api-url https://api.dflow.net/quotes \
  -okx-api-url https://www.okx.com/api/v5/market/quote

Key Metrics

Provider Health:

• external_quote_provider_health{provider} - Health status (1=healthy, 0=unhealthy)
• external_quote_provider_requests_total{provider,status} - Request counts
• external_quote_provider_latency_seconds{provider} - Latency distribution

Rate Limiting:

• external_quote_rate_limit_exceeded_total{provider} - Rate limit violations
• external_quote_request_queue_size{provider} - Queued requests

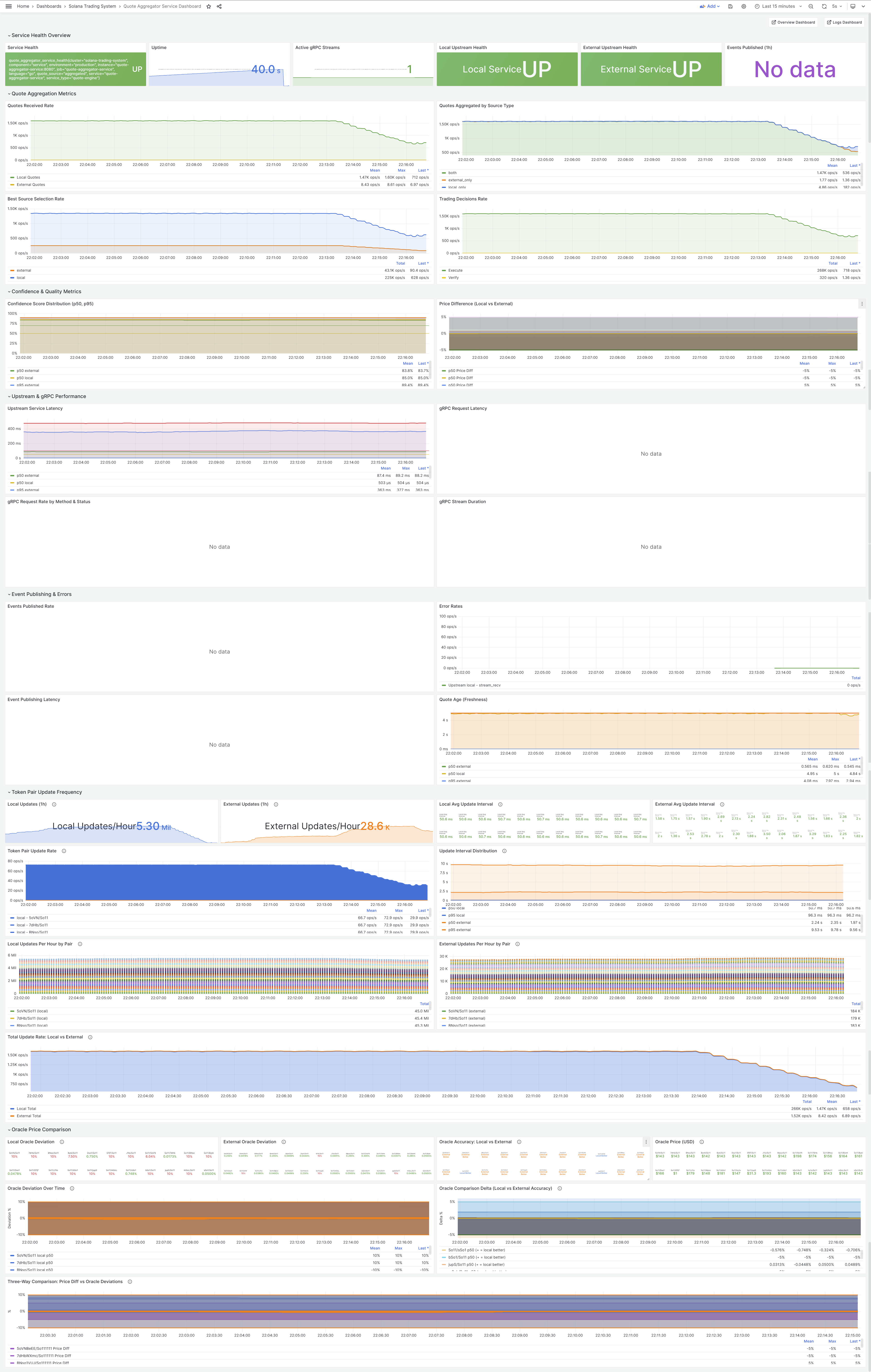

Quote Aggregator Service

The quote-aggregator-service is the client-facing API that combines quotes from local and external sources, applying confidence scoring to recommend optimal execution.

Architecture Components

1. Upstream gRPC Client

Purpose: Connect to both local (50052) and external (50053) quote services via persistent streaming connections

Features:

• Parallel streaming from both upstream services
• Automatic reconnection with exponential backoff
• Connection health monitoring
• Latency and error tracking

gRPC Keepalive: Configured for connection stability with 10s ping interval

2. Quote Aggregator

Real-time Merging:

• In-memory quote tables with pairID-based deduplication
• Route hash calculation for duplicate detection
• Best quote selection with confidence weighting

Pair ID Matching:

pairID = SHA256(inputMint + ":" + outputMint + ":" + inputAmount)[:16]

Decision Recommendations:

• Execute: High confidence (>0.8), low price difference
• Verify: Medium confidence (0.6-0.8), check oracle
• Cautious: Low confidence (0.4-0.6), manual review
• Skip: Very low confidence (<0.4), too risky

3. Confidence Scoring Integration

5-Factor Algorithm:

• Pool Age (30%): Newer pools = lower confidence
• Route Complexity (20%): More hops = lower confidence
• Oracle Deviation (30%): Higher deviation = lower confidence
• Provider Uptime (10%): Lower uptime = lower confidence
• Slippage Estimate (10%): Higher slippage = lower confidence

Separate Scoring: Local and external quotes scored independently

4. NATS Event Publisher

Purpose: Publish optimal quotes to NATS JetStream for scanner consumption

Event Type: SwapRouteEvent to market.swap_route.optimal

FlatBuffers Serialization: Efficient event encoding for high-throughput scenarios

API Endpoints

gRPC (Port 50051):

• StreamAggregatedQuotes - Server-streaming RPC for continuous updates
• GetAggregatedQuote - Unary RPC for single quote (150ms timeout)
• GetConfidenceBreakdown - Detailed confidence factor analysis
• Health - Comprehensive health check with upstream status

HTTP (Port 8080):

• GET /health - Service health with upstream status
• GET /stats - Aggregation statistics
• GET /metrics - Prometheus metrics

Price Difference Calculation

How It Works

When the aggregator receives quotes from both local and external sources for the same pair ID, it calculates the percentage difference:

priceDiffPercent = ((externalOutputAmount - localOutputAmount) / localOutputAmount) * 100

Interpretation:

• +2.0%: External gives 2% MORE output than local
• -1.5%: External gives 1.5% LESS output than local
• 0.0%: Both sources give the same output

Example

Swap: 1 SOL → USDC

Local Quote:
  - outputAmount: 150,000,000 (150 USDC)

External Quote:
  - outputAmount: 151,500,000 (151.5 USDC)

Price Difference:
  = ((151,500,000 - 150,000,000) / 150,000,000) * 100
  = 1.0%

Result: External is 1% better for this swap

Oracle-Based Price Comparison

The oracle price serves as a neutral baseline for comparing local and external quotes.

Oracle Deviation Formula:

deviation_percent = ((quote_price - oracle_price) / oracle_price) * 100

Oracle Comparison Delta:

delta = |external_deviation| - |local_deviation|

Interpretation:

• +0.5%: Local is 0.5% closer to oracle (more accurate)
• -0.5%: External is 0.5% closer to oracle (more accurate)
• 0.0%: Both equally close to oracle

Key Metrics: Price Difference Calculation

These metrics help identify which source provides better prices and by how much.

Core Price Metrics

Price Difference (Local vs External):

• Metric: quote_aggregator_aggregator_price_diff_percent
• Type: Histogram
• Labels: pair (e.g., So111111/EPjFWdd5)
• Buckets: -5, -2, -1, -0.5, -0.1, 0, 0.1, 0.5, 1, 2, 5

PromQL Queries:

# Median price difference over 5 minutes
histogram_quantile(0.50, rate(quote_aggregator_aggregator_price_diff_percent_bucket[5m]))

# 95th percentile (extreme outliers)
histogram_quantile(0.95, rate(quote_aggregator_aggregator_price_diff_percent_bucket[5m]))

# Price difference for specific pair
histogram_quantile(0.50, rate(quote_aggregator_aggregator_price_diff_percent_bucket{pair="So111111/EPjFWdd5"}[5m]))

Interpretation:

• Median ~0%: Local and external are well-calibrated
• Median consistently positive: External finds better routes
• Median consistently negative: Local finds better routes
• High variance: Prices fluctuate; use caution
• Spikes > 5%: Potential arbitrage or stale data

Oracle Comparison Metrics

Oracle Deviation by Source:

• Metric: quote_aggregator_aggregator_oracle_deviation_percent
• Labels: source (local/external), pair
• Buckets: -10, -5, -2, -1, -0.5, -0.1, 0, 0.1, 0.5, 1, 2, 5, 10

Oracle Comparison Delta:

• Metric: quote_aggregator_aggregator_oracle_comparison_best_delta_percent
• Labels: pair
• Interpretation: Positive = local closer to oracle, Negative = external closer

Quote Price vs Oracle Ratio:

• Metric: quote_aggregator_aggregator_quote_price_vs_oracle_ratio
• Buckets: 0.9, 0.95, 0.98, 0.99, 0.995, 1.0, 1.005, 1.01, 1.02, 1.05, 1.1
• Interpretation: 1.0 = matches oracle, >1.0 = better than oracle

Oracle Price USD:

• Metric: quote_aggregator_aggregator_oracle_price_usd
• Type: Gauge
• Labels: pair, token (input/output)

Implementation Status

✅ Core Implementation Complete (January 18, 2026)

Files Created:

• internal/quote-aggregator-service/client/upstream_client.go ✅
• internal/quote-aggregator-service/aggregator/aggregator.go ✅
• internal/quote-aggregator-service/server/server.go ✅
• internal/quote-aggregator-service/publisher/publisher.go ✅
• cmd/quote-aggregator-service/main.go ✅

Compilation: ✅ No errors

Next Steps for Quote Aggregator

Phase 1: Integration Testing

• Test with running local-quote-service
• Test with running external-quote-service
• Verify NATS event publishing
• Test gRPC streaming with ts-scanner-service

Phase 2: Shared Memory Writer

• Implement dual shared memory writer (quotes-local.mmap, quotes-external.mmap)
• Ring buffer with hybrid change detection
• Rust scanner integration

Phase 3: Production Hardening

• Add circuit breaker for upstream services
• Implement retry with exponential backoff
• Add rate limiting for downstream clients
• Comprehensive metrics and alerting

Metrics and Observability

Local Quote Service Metrics

31+ Prometheus metrics across 10 categories:

1. Pool Quality (3 metrics): Tier distribution, rogue %, priority
2. Oracle Validation (3 metrics): Validation results, deviation, duration
3. Pool Selection (3 metrics): Selections by tier/status, filtered count
4. Refresh Priority (4 metrics): Queue size, duration, failures
5. Pool Usage (1 metric): Usage count per pool
6. Status Transitions (1 metric): Transitions with reasons
7. WebSocket Health (5 metrics): Reconnections, latency, subscriptions, uptime
8. RPC Fallback (2 metrics): Fallback triggers, rate limits
9. Cache Performance (7 metrics): Hit rates, evictions, state age
10. Quote Accuracy (4 metrics): Price deviation, slippage, errors

Quote Aggregator Metrics

Aggregation Metrics:

• quote_aggregator_aggregator_quotes_received_total{source} - Quotes from upstream
• quote_aggregator_aggregator_quotes_aggregated_total{type} - Aggregated quotes (local_only/external_only/both)
• quote_aggregator_aggregator_best_source_total{source} - Best source selections
• quote_aggregator_aggregator_confidence_score{source} - Confidence distribution
• quote_aggregator_aggregator_decisions_total{decision} - Trading decisions

Token Pair Update Frequency:

• quote_aggregator_grpc_token_pair_updates_total{source,pair} - Total updates per pair
• quote_aggregator_grpc_token_pair_update_interval_seconds{source,pair} - Interval between updates
• quote_aggregator_grpc_token_pair_last_update_timestamp{source,pair} - Last update timestamp

Upstream Client:

• quote_aggregator_upstream_health{source} - Upstream connection health
• quote_aggregator_upstream_latency_seconds{source} - Request latency
• quote_aggregator_upstream_errors_total{source,error_type} - Error tracking

Grafana Dashboards

Local Quote Service Dashboard (10 rows, 40+ panels):

1. Pool Quality Overview
2. Oracle Validation Health
3. Pool Selection Analytics
4. Refresh Priority Management
5. Pool Usage Analytics
6. Pool Status Transitions
7. WebSocket Real-Time Updates
8. RPC Fallback Health
9. Dual Cache Architecture
10. Quote Correctness

Quote Aggregator Dashboard (planned):

1. Price Difference Analysis (Local vs External)
2. Oracle Comparison (Three-Way)
3. Confidence Score Distribution
4. Token Pair Update Frequency
5. Best Source Selection
6. Upstream Service Health

Alerting

P0 Critical Alerts:

• RoguePoolPercentageHigh: >10% pools flagged as rogue
• OracleValidationFailureHigh: <95% validation success rate
• HighPriceDifference: Median price diff >5% or <-5%
• StaleTokenPairQuotes: No updates in 5+ minutes

P1 Warning Alerts:

• QuoteDeviationHigh: p95 deviation >1%
• HighOracleDeviation: Oracle deviation >5%
• ExternalMoreAccurateThanLocal: External consistently closer to oracle

Impact and Next Steps

Achieved Results

Local Quote Service:

• ✅ Sub-2ms pool selection (exceeds <10ms target)
• ✅ Oracle-validated prices with ±20% deviation threshold
• ✅ Progressive recovery for rogue pools
• ✅ 100% metrics coverage (31+ metrics)
• ✅ WebSocket-first architecture with RPC fallback

External Quote Service:

• ✅ Multi-provider integration (Jupiter, DFlow, OKX)
• ✅ Circuit breaker protection
• ✅ Health tracking and monitoring
• ✅ Rate limiting and backoff strategies

Quote Aggregator Service:

• ✅ Real-time quote merging from dual sources
• ✅ Confidence scoring integration (5-factor algorithm)
• ✅ Oracle-based price comparison
• ✅ Price difference calculation and tracking
• ✅ Decision recommendations (Execute/Verify/Cautious/Skip)

Production Deployment Plan

Week 1: Integration Testing

• Deploy local-quote-service with quality management enabled
• Deploy external-quote-service with Jupiter integration
• Deploy quote-aggregator-service in shadow mode
• Verify NATS event flow and metrics collection

Week 2: Gradual Rollout

• Enable local quote service quality management (20% → 50% → 100%)
• Monitor rogue pool percentage and oracle validation success
• Verify pool selection distribution and refresh performance
• Gradual rollout of quote aggregator (shadow → 50% → 100%)

Week 3: Production Validation

• Monitor price difference metrics across all pairs
• Validate oracle comparison accuracy
• Confirm confidence scoring improves execution quality
• Measure latency improvements and quote freshness

Future Enhancements

Shared Memory Integration:

• Dual shared memory writer for ultra-low latency Rust scanner
• Ring buffer with hybrid change detection
• Sub-microsecond quote access

Machine Learning Integration:

• Predictive confidence scoring based on historical accuracy
• Dynamic weight adjustment for confidence factors
• Anomaly detection for price manipulation

Advanced Routing:

• Multi-hop route optimization
• Triangle arbitrage detection
• Cross-DEX routing strategies

Conclusion

The quote service ecosystem has evolved from a single monolithic service to a sophisticated three-tier architecture with specialized responsibilities:

• Local Quote Service provides fast, oracle-validated quotes from on-chain pools with intelligent quality management
• External Quote Service integrates third-party aggregators for market pricing with circuit breaker protection
• Quote Aggregator Service merges both sources with confidence scoring and oracle comparison for optimal execution

With sub-2ms local quote selection, comprehensive price difference tracking, and intelligent aggregation, the system is positioned to deliver superior trade execution for HFT operations on Solana.

Related Posts

• Pool Discovery Refactored: Bug Fixes and Comprehensive Testing - Foundation for pool quality management
• Happy New Year 2026: Quote Service Three-Way Split - Architecture decision for splitting services
• Pool Discovery Service RPC Proxy Architecture - WebSocket-first design patterns

Technical Documentation

• Local Quote Service Enhancements
• Quote Aggregator Implementation
• Quote Aggregator Metrics

Connect

• GitHub: guidebee/solana-trading-system
• LinkedIn: James Shen

This is post #22 in the Solana Trading System development series. The quote service ecosystem has been transformed with intelligent pool quality management, external quote integration, and real-time aggregation with confidence scoring. With comprehensive metrics and oracle-based price comparison, the system delivers optimal trade execution for high-frequency trading on Solana.
