Scanner Service Deep Dive: Arbitrage Detection Engine with Full Observability
Published:
TL;DR
- Scanner Service Complete: First production component in the HFT pipeline - detects arbitrage opportunities from dual quote streams with sub-10ms latency
- Full Observability: Comprehensive Grafana dashboard with 3.86M quotes processed and 878K opportunities detected
- Two-Month Reflection: AI tools (GitHub Copilot, Claude Code, Google’s tools) are transforming development - traditional programming may be fundamentally changing
- Happy Australia Day: Taking a holiday break to visit family in China
Happy Australia Day!
Before diving into technical content, I want to wish everyone a Happy Australia Day! It’s January 26th here, and I’ll be taking a well-deserved holiday break, heading back to China to visit my parents, brother, and friends. After two intense months of building this trading system, some time with family is exactly what I need.
Table of Contents
- Scanner Service Architecture
- Data Flow Pipeline
- Grafana Dashboard
- Two-Month Project Summary
- Reflections on AI-Assisted Development
- Conclusion
Scanner Service Architecture
The TypeScript Scanner Service is the first production component in the HFT trading pipeline. It serves as both a functional production system and a prototype for a future high-performance Rust implementation.
System Context
┌─────────────────────────────────────────────────────────────────────────────────┐
│ HFT Trading Pipeline │
├─────────────────────────────────────────────────────────────────────────────────┤
│ │
│ ┌──────────────────────┐ │
│ │ Pool Discovery │ Discovers DEX pools (Raydium, Meteora, PumpSwap) │
│ │ Service (Go) │ Subscribes to on-chain pool state changes │
│ └──────────┬───────────┘ │
│ │ Pool updates │
│ ▼ │
│ ┌──────────────────────────────────────────────────────────────────────────┐ │
│ │ Quote Services Layer (Go) │ │
│ │ ┌─────────────────────────┐ ┌─────────────────────────────────────┐ │ │
│ │ │ Local Quote Service │ │ External Quote Service │ │ │
│ │ │ (port 50052) │ │ (port 50053) │ │ │
│ │ │ │ │ │ │ │
│ │ │ - On-chain pool quotes │ │ - Jupiter aggregator API │ │ │
│ │ │ - < 10ms latency │ │ - Dark pools (HumidiFi, GoonFi) │ │ │
│ │ │ - 30s refresh interval │ │ - 10s refresh interval │ │ │
│ │ │ - No rate limits │ │ - 1 RPS Jupiter rate limit │ │ │
│ │ └────────────┬────────────┘ └─────────────────┬───────────────────┘ │ │
│ └───────────────┼────────────────────────────────────┼──────────────────────┘ │
│ │ gRPC Stream │ gRPC Stream │
│ │ │ │
│ ┌───────────────▼────────────────────────────────────▼──────────────────────┐ │
│ │ ★ SCANNER SERVICE (TypeScript) ★ │ │
│ │ │ │
│ │ - Receives quotes from both services via gRPC streaming │ │
│ │ - Detects arbitrage opportunities (round-trip profit) │ │
│ │ - Publishes FlatBuffers events to NATS JetStream │ │
│ │ - Full observability (Prometheus, Loki, Tempo) │ │
│ └───────────────────────────────────────────┬───────────────────────────────┘ │
│ │ NATS JetStream │
│ │ (FlatBuffers) │
│ ┌───────────────────────────────────────────▼───────────────────────────────┐ │
│ │ Strategy Service (TypeScript) │ │
│ └───────────────────────────────────────────────────────────────────────────┘ │
│ │
└─────────────────────────────────────────────────────────────────────────────────┘
Internal Components
The scanner service is built with a clean, layered architecture:
┌─────────────────────────────────────────────────────────────────────────────────┐
│ Scanner Service Internals │
├─────────────────────────────────────────────────────────────────────────────────┤
│ │
│ ┌───────────────────────────────────────────────────────────────────────────┐ │
│ │ Entry Point │ │
│ │ (src/index.ts) │ │
│ │ │ │
│ │ - Initialize observability (ts-scanner-service prefix) │ │
│ │ - Start HTTP metrics server (:9092) │ │
│ │ - Connect to NATS JetStream │ │
│ │ - Create and start scanner components │ │
│ │ - Handle graceful shutdown (SIGINT/SIGTERM) │ │
│ └───────────────────────────────────────────────────────────────────────────┘ │
│ │
│ ┌───────────────────┼───────────────────┐ │
│ │ │ │ │
│ ▼ ▼ ▼ │
│ ┌─────────────────────┐ ┌─────────────────────┐ ┌────────────────────────┐ │
│ │ ScannerService │ │ ArbitrageQuote │ │ SystemHandler │ │
│ │ (scanner.ts) │ │ ScannerFlatBuf │ │ (system-handler.ts) │ │
│ │ │ │ │ │ │ │
│ │ NATS MARKET_DATA │ │ Main scanner engine │ │ SYSTEM stream listener │ │
│ │ consumer (legacy) │ │ gRPC quote streams │ │ - Kill switch │ │
│ │ │ │ FlatBuf publishing │ │ - Graceful shutdown │ │
│ └─────────────────────┘ └──────────┬──────────┘ └────────────────────────┘ │
│ │ │
│ ▼ │
│ ┌────────────────────────────────────────────────────────────────────────┐ │
│ │ gRPC Client Layer │ │
│ │ ┌─────────────────────────────┐ ┌─────────────────────────────────┐ │ │
│ │ │ GrpcMultiQuoteClient │ │ GrpcAggregatorClient │ │ │
│ │ │ (Direct Mode - Default) │ │ (Aggregator Mode) │ │ │
│ │ │ │ │ │ │ │
│ │ │ - Local stream (50052) │ │ - Single connection (50051) │ │ │
│ │ │ - External stream (50053) │ │ - Pre-aggregated quotes │ │ │
│ │ │ - Emits TaggedQuote │ │ - Emits AggregatedQuote │ │ │
│ │ │ - Independent reconnect │ │ - Best source selection │ │ │
│ │ └─────────────────────────────┘ └─────────────────────────────────┘ │ │
│ └────────────────────────────────────────────────────────────────────────┘ │
│ │
└─────────────────────────────────────────────────────────────────────────────────┘
Key Design Decisions
1. Direct Mode as Default
The scanner operates in “direct mode” by default, connecting to both local (50052) and external (50053) quote services independently. This provides:
- Independent processing of local and external quotes
- External arbitrage detection even when local “wins”
- Lower latency without aggregation overhead
- Separate profit thresholds per source
2. FlatBuffers over JSON
Events are serialized using FlatBuffers instead of JSON for:
- ~10x faster serialization/deserialization
- ~50% smaller payload size
- Schema-enforced type safety at compile time
- Zero-copy direct memory access
3. Source-Specific Profit Thresholds
- LOCAL quotes: 50 bps minimum (higher confidence, trusted on-chain data)
- EXTERNAL quotes: 10 bps minimum (API aggregation may have stale data, but Jupiter multi-hop routing can find better prices)
Data Flow Pipeline
Quote Processing Flow
1. QUOTE ACQUISITION
┌────────────────────────────────────────────────────────────────────┐
│ │
│ Local Quote Service ─────┐ │
│ (50052) │ │
│ - Raydium AMM/CLMM/CPMM │ ┌──────────────────────┐ │
│ - Meteora DLMM ├────────▶│ GrpcMultiQuoteClient │ │
│ - PumpSwap │ │ │ │
│ │ │ TaggedQuote { │ │
│ External Quote Service ─┘ │ sourceTag: 'local'│ │
│ (50053) │ | 'external'│ │
│ - Jupiter API │ } │ │
│ - Dark pools └──────────┬───────────┘ │
│ │ │
└───────────────────────────────────────────────┼────────────────────┘
│
▼
2. QUOTE CACHING & MATCHING
┌────────────────────────────────────────────────────────────────────┐
│ QuoteStreamHandler │
│ │
│ Quote Cache (Map<string, CachedQuote>) │
│ ┌─────────────────────────────────────────────────────────────┐ │
│ │ Key: `${pairId}:${inputMint}:${provider}` │ │
│ │ Value: { quote, timestamp, source } │ │
│ │ │ │
│ │ TTL: │ │
│ │ - Local quotes: 5 seconds │ │
│ │ - External quotes: 30 seconds │ │
│ └─────────────────────────────────────────────────────────────┘ │
│ │
│ Matching Logic: │
│ ┌─────────────────────────────────────────────────────────────┐ │
│ │ For each incoming quote (A → B): │ │
│ │ 1. Cache the quote │ │
│ │ 2. Look for reverse quote (B → A) in cache │ │
│ │ 3. If found → Calculate arbitrage profit │ │
│ └─────────────────────────────────────────────────────────────┘ │
│ │
└───────────────────────────────────────────────────────────────────┘
│
▼
3. PROFIT CALCULATION
┌────────────────────────────────────────────────────────────────────┐
│ profit-calculator.ts │
│ │
│ Two-Hop Arbitrage Formula: │
│ ┌─────────────────────────────────────────────────────────────┐ │
│ │ │ │
│ │ Forward Quote: A → B │ │
│ │ inputAmount = 1 SOL (1_000_000_000 lamports) │ │
│ │ forwardOutput = X USDC │ │
│ │ │ │
│ │ Reverse Quote: B → A │ │
│ │ inputAmount = Y USDC (from previous quote) │ │
│ │ reverseOutput = Z SOL │ │
│ │ │ │
│ │ Profit: │ │
│ │ grossProfit = adjustedOutput - initialInput │ │
│ │ networkFees = priorityFee + jitoTip (≈ 30,000 lamports) │ │
│ │ netProfit = grossProfit - networkFees │ │
│ │ profitBps = (netProfit / initialInput) * 10000 │ │
│ │ │ │
│ └─────────────────────────────────────────────────────────────┘ │
│ │
└───────────────────────────────────────────────────────────────────┘
│
▼
4. EVENT PUBLISHING
┌────────────────────────────────────────────────────────────────────┐
│ │
│ FlatBuffers Serialization → NATS JetStream │
│ ┌─────────────────────────────────────────────────────────────┐ │
│ │ Stream: OPPORTUNITIES │ │
│ │ Subject: opportunity.arbitrage.two_hop.{token1}.{token2} │ │
│ │ Format: FlatBuffers binary (JSON fallback on error) │ │
│ └─────────────────────────────────────────────────────────────┘ │
│ │
└────────────────────────────────────────────────────────────────────┘
Performance Characteristics
| Operation | Target | Actual |
|---|---|---|
| Quote receive (gRPC) | < 1ms | ~0.5ms |
| Quote caching | < 1ms | ~0.1ms |
| Quote matching | < 1ms | ~0.2ms |
| Profit calculation | < 1ms | ~0.3ms |
| FlatBuffers serialize | < 1ms | ~0.2ms |
| NATS publish | < 5ms | ~2ms |
| Total per quote | < 10ms | ~3-4ms |
Grafana Dashboard

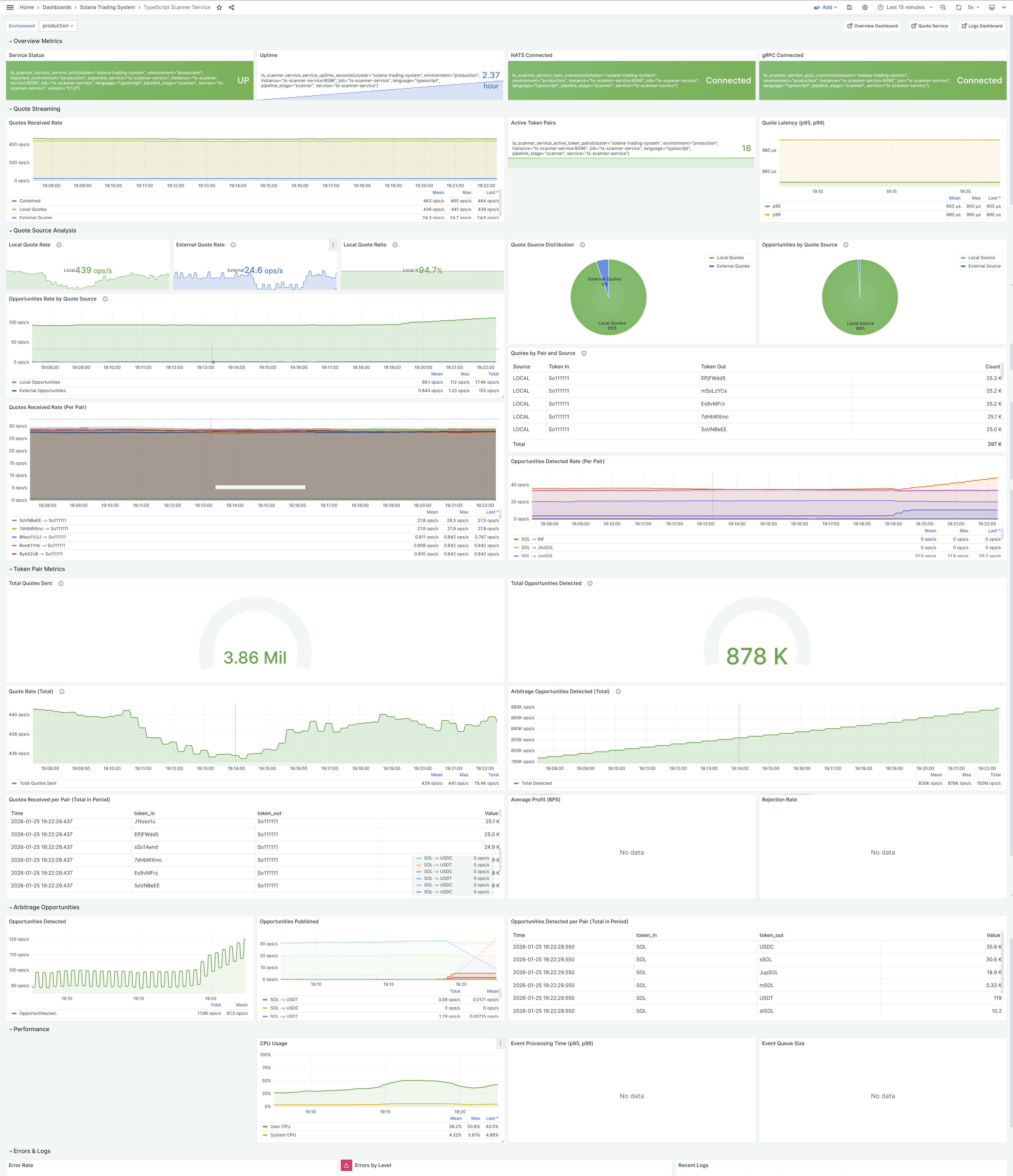

The scanner service has a comprehensive Grafana dashboard for monitoring all aspects of service health and performance.
Dashboard Overview
| Section | Key Metrics |
|---|---|
| Overview Metrics | Service Status, Uptime, NATS/gRPC Connection Status |
| Quote Streaming | Quotes Received Rate (3.86M total), Active Token Pairs, Quote Latency |
| Quote Source Analysis | Local vs External distribution, Opportunities by source |
| Arbitrage Opportunities | 878K total opportunities detected, Profit distribution |
| Performance | CPU usage, Event processing time, Queue size |
| Errors & Logs | Error rate tracking, Loki log streaming |
Key Metrics
Quote Processing:
ts_scanner_service_quotes_received_total- 3.86 Million quotes processedts_scanner_service_active_token_pairs- Number of monitored pairs
Arbitrage Detection:
ts_scanner_service_arbitrage_opportunities_detected_total- 878K opportunities foundts_scanner_service_arbitrage_profit_bps- Profit distribution in basis points
Health Indicators:
ts_scanner_service_nats_connected- NATS connectivity (green = connected)ts_scanner_service_grpc_connected- gRPC stream health
Alert Rules
Critical (P0):
- Scanner service down for > 1 minute
- NATS disconnected for > 30 seconds
- gRPC disconnected for > 30 seconds
Warning (P1):
- Error rate > 0.1/second for 5 minutes
- Queue backlog > 100 for 2 minutes
- No quotes received for 2 minutes
Two-Month Project Summary
Looking back at the past two months of development (late November 2025 to late January 2026), the progress has been remarkable:
Infrastructure Built (85% Complete)
Go Codebase (~62,000 lines across 206 files):
- Pool Discovery Service - DEX pool discovery with Redis caching
- Local Quote Service - 10 DEX protocols, sub-2ms selection
- External Quote Service - Jupiter/DFlow/OKX integration
- Quote Aggregator Service - Confidence scoring, oracle comparison
- Event Logger Service - 6-stream NATS, FlatBuffers, Loki integration
TypeScript Services:
- Scanner Service - Arbitrage detection engine (this post)
- Strategy Service - Opportunity validation (in progress)
- Executor Service - Transaction building/submission (planned)
Infrastructure (21 Docker services):
- Event Streaming: NATS JetStream with 6 configured streams
- Observability: Grafana LGTM+ stack (Prometheus, Loki, Tempo, Mimir, Pyroscope)
- Database: PostgreSQL + TimescaleDB
- Caching: Redis with pub/sub
- Networking: Traefik reverse proxy
Milestones Achieved
| Date | Milestone |
|---|---|
| Dec 4 | Project kickoff, initial architecture |
| Dec 10 | Grafana LGTM stack unified observability |
| Dec 18 | FlatBuffers migration, HFT pipeline ready |
| Dec 22 | Quote service architecture established |
| Dec 28 | Pool discovery service complete |
| Jan 1 | Quote service three-way split |
| Jan 8 | Pool discovery refactored with testing |
| Jan 18 | Quote services ecosystem evolution |
| Jan 20 | Infrastructure milestone - 85% complete |
| Jan 25 | Scanner service deep dive (this post) |
Reflections on AI-Assisted Development
This project has been my first deep experience using AI coding assistants for a substantial codebase. Here are my honest reflections:
Tools Used
GitHub Copilot: Excellent for autocomplete and inline suggestions. Particularly helpful for boilerplate code, repetitive patterns, and when you know exactly what you want to write.
Claude Code: My primary tool for complex tasks. Particularly strong at:
- Understanding system architecture
- Writing comprehensive documentation
- Debugging complex issues
- Refactoring large codebases
Google’s AI Tools (Gemini/Bard): Good for research and exploring alternatives. Useful for getting different perspectives on architectural decisions.
What Impressed Me
For clearly defined tasks, these tools can work as fast as (or faster than) experienced developers like myself. Examples:
- Writing unit tests for existing code
- Creating Grafana dashboards from metrics
- Implementing well-documented APIs
- Refactoring code to new patterns
- Writing documentation
The scanner service documentation you see in this post? Much of it was AI-assisted. The architecture diagrams, the metric tables, the alert configurations - tasks that would have taken hours were completed in minutes.
Current Limitations
AI tools still need experienced developer guidance:
- Architectural decisions require human judgment
- Security considerations need careful review
- Performance optimization needs real-world testing
- Integration testing catches issues AI misses
The tools are assistants, not replacements. They amplify developer productivity but don’t eliminate the need for expertise.
The Future of Programming
Here’s my honest prediction: traditional programming as we know it may be fundamentally changing.
For the past 30+ years, programming has been about translating human intent into precise syntax. But AI is rapidly closing the gap between “what I want” and “working code.”
Near term (1-2 years):
- AI handles 70-80% of routine coding tasks
- Developers focus on architecture, integration, and oversight
- Code review becomes more about intent than syntax
Medium term (3-5 years):
- AI may form closed loops - improving its own code
- The role of “programmer” evolves to “system architect” and “AI supervisor”
- Entry-level coding jobs transform dramatically
My advice for the next generation: Learn to work WITH AI, not against it. The skills that matter will be:
- System thinking and architecture
- Understanding business requirements
- Quality assurance and testing
- Security and ethics
- Communication and collaboration
The developers who thrive will be those who can leverage AI to multiply their effectiveness, not those who try to compete with it on raw coding speed.
Conclusion
The Scanner Service represents a significant milestone in the Solana Trading System - the first production component capable of detecting arbitrage opportunities in real-time. With 3.86M quotes processed and 878K opportunities detected, the system is proving its viability.
Technical Achievements:
- Sub-10ms end-to-end processing latency
- Dual quote source integration (local + external)
- FlatBuffers serialization for high performance
- Comprehensive observability with Grafana
Personal Reflections:
- AI tools have transformed my development workflow
- Two months of intense work has built a solid foundation
- The future of programming is exciting (and a bit uncertain)
What’s Next: After the holiday break, focus shifts to:
- Strategy Service implementation
- Executor Service with Jito bundle submission
- Paper trading validation
- Small capital testing
Happy Australia Day to everyone! I’ll be spending quality time with family in China, recharging for the next phase of development. See you in February!
Related Posts
- Project Milestone Complete: Infrastructure Ready for Arbitrage Phase - Overall project status
- Quote Services Evolution: Local Enhancements, External Integration, and Aggregator Architecture - Quote service ecosystem
- HFT Pipeline Architecture: FlatBuffers Performance Optimization - Event serialization
Technical Documentation
Connect
- GitHub: guidebee/solana-trading-system
- LinkedIn: James Shen
This is post #24 in the Solana Trading System development series. The Scanner Service brings the HFT pipeline to life, detecting arbitrage opportunities with sub-10ms latency. As I take a holiday break for Australia Day, I reflect on two months of AI-assisted development and the changing landscape of programming. Happy holidays to all!
