Introducing Engine 2: A Rule Engine for Game Behavior

Post #42 in the Super Morse series. Earlier posts touched on Engine 2 in passing. This one is the introduction I should have written first: what it is, how it is put together, how it runs, what the spec guarantees, and the question that matters most, which is why a rule engine at all?

TL;DR

• Engine 2 is a game-independent rule language and execution system. Actor and scene behavior is written as typed, ordered rules, compiled to a project-owned binary format (.e2b), and executed by a small virtual machine. The game keeps its mechanics (movement, collision, rendering, audio); the rules only sequence them.
• The design is four layers: an engine-neutral core, a per-game profile, a per-game host, and a per-engine platform adapter. Dependencies point down only.
• The runtime is two small machines (actor and scene), driven by integer ticks, with bounded budgets, deterministic behavior and source-mapped diagnostics.
• It is specified before it is trusted: a 1.0 specification, byte-exact test vectors, and a reference implementation of the core in the gameengine module. Seven of eleven delivery phases are closed; the first game profile and host integration are next.

1. What Engine 2 is

Think of how a programming language relates to the programs written in it. Engine 2 relates to games the same way. It defines:

• a small language (.e2) for describing what an actor or a scene does,
• a typed model and a binary format that every rule compiles to,
• a VM that executes that format, and
• a narrow host boundary through which rules affect the world.

What it deliberately does not define is anything about a particular game. There is no jump height, no enemy, no tile in the core. Those arrive through a profile, which is the contract saying what a game’s rule operations mean.

Here is the entire shape of an authored actor, taken from the specification’s normative example:

engine2 1;
profile "spec.example";
actor Counter resource 1 {
    local count: int at 0;
    local route: int at 1; local out: int at 2;
    rule first when self.count == 0 { self.count = 1; }
    else rule second when self.count == 0 { self.count = 2; }
    else rule third when self.count == 0 { self.count = 3; }
    rule route when self.route == 0 { self.route = 1; goto finish; }
    rule skipped { self.out = 9; }
    rule finish { self.out = 7; return; }
}

Each rule has an optional branch form (else, return, goto), a list of conditions and a list of actions. Conditions and actions are not free-form code. Each one is a call to an operation registered by the game’s profile, with a typed signature. That is the whole trick: the language is tiny and fixed, and the vocabulary is supplied per game.

Scenes use the same model with two additions, activation and repeat, plus the ability to wait:

scene Intro resource 2 {
    program opening at 0 {
        rule start activation always repeat once when system.phase == 0 {
            system.phase = 1;
            wait ticks(1);
            system.phase = 2;
        }
        else rule alternate activation always repeat forever when system.phase == 0 {
            system.phase = 9;
        }
    }
}

That wait ticks(1) is how a cutscene, a tutorial prompt or a camera move is sequenced without the rule author writing a state machine by hand.

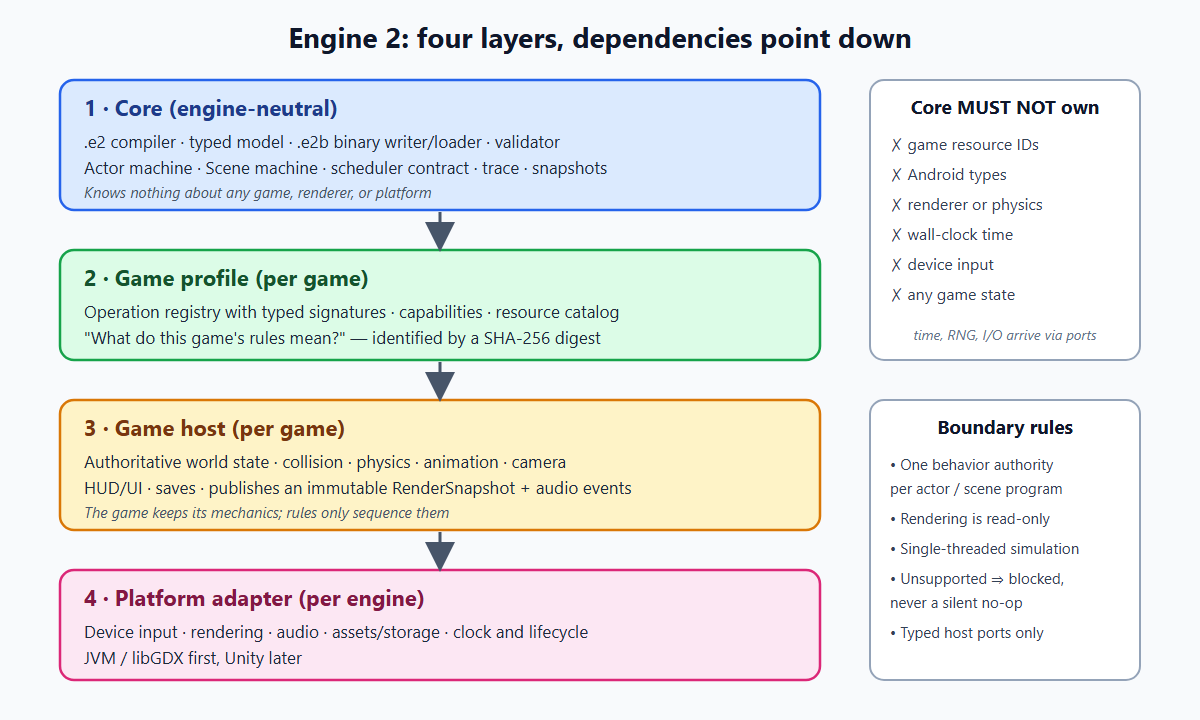

2. Architecture: four layers

A few boundary rules do most of the work of keeping this honest:

1. Rules never draw or play anything. Effects leave through typed host ports. Rendering reads an immutable snapshot and never writes actor state; audio consumes semantic events (“play this clip”) rather than calling an audio API.
2. One behavior authority per actor instance and scene program. Two writers is a defect, and authority only switches at a stage-attempt boundary.
3. The core never touches the platform. Time, randomness, storage and input reach it through injected ports, and the core and game host are single-threaded.
4. Unsupported means blocked. If a program needs a capability the host has not implemented, the whole program is disabled with a source-mapped diagnostic. It is never enabled as a silent no-op.

The practical effect of this layering is that porting is well-scoped. The portable asset is the specification and the .e2b byte format, not the Java classes. The first target is the JVM (Android, with the libGDX-derived Guidebee Game Engine); a Unity host is planned later, and golden traces from the Java reference host are the conformance target any second core must reproduce event for event.

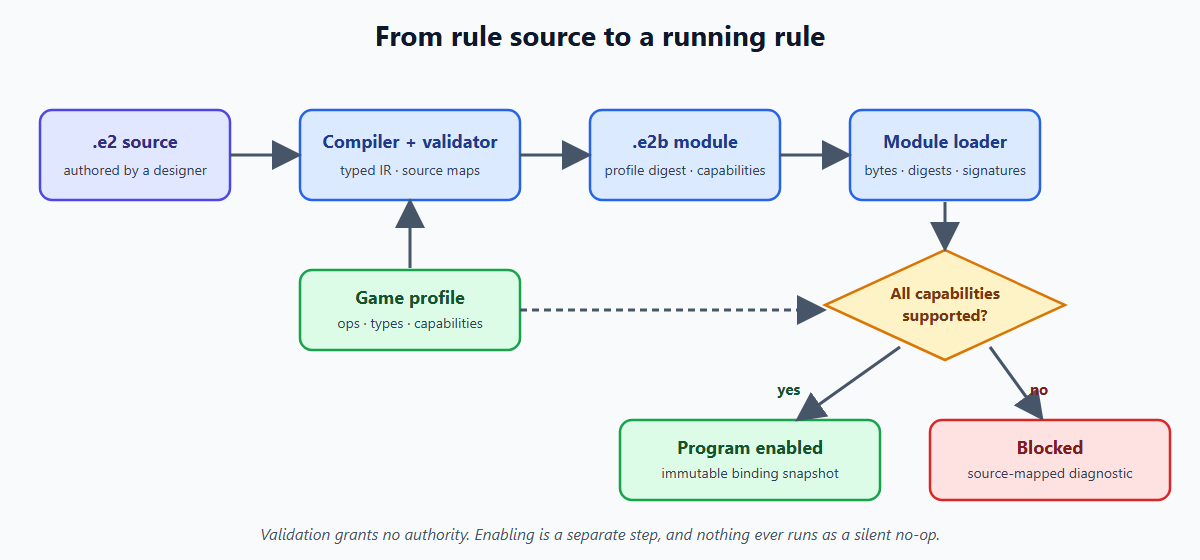

3. From source to a running rule

The pipeline has a deliberate gate in the middle:

1. The compiler lowers .e2 source to the typed model, checking every call against the game’s profile and recording a source map so a runtime event can be traced back to a line.
2. The binary writer emits an .e2b module. Output is reproducible: identical models produce identical bytes, with no timestamps or absolute paths. The header carries a SHA-256 digest of the profile’s canonical contract, so a module can only run against the profile it was compiled for.
3. The loader validates bytes, digests and signatures. It never calls an effect.
4. Enabling is a separate step. Every capability the module needs must be reported by the host at an equal major version, and every resource it references must exist in the game’s catalog with the right type. Only then is an immutable binding published.

Validation alone grants no authority. A missing capability or resource blocks the program with a diagnostic, and a change in the resource catalog deauthorizes a program before its next visit.

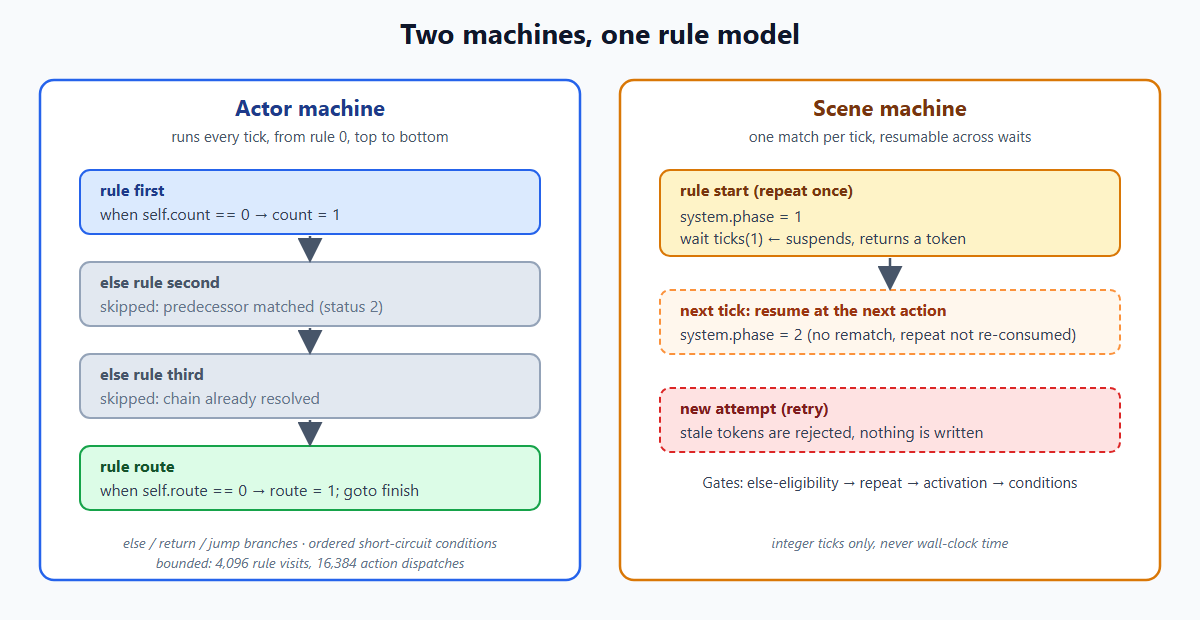

4. The runtime: two machines

Engine 2 has two machines that share values, tracing and host services, but keep separate control flow and separate operation namespaces. A scene action and an actor action that happen to share a number mean unrelated things, and the registry is keyed by (family, role, id) so they can never be confused.

The actor machine runs a visit from rule 0 on every tick. The pseudocode from the spec is short enough to quote:

pc = 0
while pc < ruleCount:
    charge one rule-visit              // fault E2_BUDGET if over 4096
    r = rules[pc]
    if r.branch is an else form:
        if status[pc-1] in {matched, skipped}:
            status[pc] = skipped; pc += 1; continue
    matched = evaluate(r.conditions, r.join)   // ordered, short-circuit
    if not matched: pc += 1; continue
    for a in r.actions:
        charge one action-dispatch     // fault E2_BUDGET if over 16384
        dispatch(a)
    if r.branch is a return form: return
    if r.branch is a jump form: pc = r.jumpTarget; continue
    pc += 1

The scene machine keeps a cursor per program slot and starts at most one rule match per tick. Its gates are evaluated in a fixed order: else-eligibility, remaining repeat, activation, then conditions. When an action returns SUSPEND(token), such as a wait, the action list pauses and resumes at the next action later. It does not rematch the rule, and it does not consume the repeat count again.

A few properties make the runtime something you can trust and test:

One more design point: the tick rate is an output of the core as well as an input. A rule can change the frame period during play, so the scheduler is a contract between the core and the host rather than a fixed loop.

5. The specification

Engine 2 is specified in nine chapters, and the spec is the design source for every implementation phase:

Three habits keep a spec like this from drifting into fiction:

• Every statement has a status label: Normative (a requirement, in the RFC 2119 sense), Design, Derived, Proposed, Open or Reserved. A reader always knows how much weight a sentence carries.
• Byte-exact vectors. The module 1.1 format ships with an exact 1,280-byte actor vector and a 699-byte scene vector, plus ten negative paths. The loader must load and re-encode them byte for byte.
• A decision register. Conflicts are resolved by recording a numbered decision, not by silently preferring one document.

Equivalence is stated in tiers rather than as a vague promise. For a given game, the functional core (rule order, branch semantics, ordered short-circuit evaluation, wait boundaries, spawn and remove visibility) must always match; some quirks only matter where real content reaches them; and exception paths and invalid ranges are free to differ.

6. Why a rule engine?

This is the question that decides whether any of the above is worth building. The alternative is the usual one: write each actor and each scene as Java, one class or one big switch at a time. Engine 2 argues against that for six reasons.

There is a seventh reason that matters to me personally as a one-person shop: designer authoring. The goal in Chapter 8 is that a non-developer can build levels, cutscenes and tutorials in Guidebee Studio as data that runs on any host implementing the game’s profile, with no game-specific engine code. That only works if behavior is data.

The costs, stated honestly

A rule engine is not free, and the spec lists what it accepts:

• Hidden semantics must be written down. Numeric IDs are opaque, so every operation needs a name, a signature and a source map.
• Rule systems tend to grow into poor programming languages. Engine 2 fights this on purpose: it is not a general-purpose scripting language. No loops, no user functions, no dynamic strings, no arbitrary code. The language grows only by versioned increments, and reserved features are rejected with a diagnostic until they exist.
• An extra layer to debug. This is why source-mapped diagnostics, traces and golden traces are first-class requirements rather than afterthoughts.

7. Where it stands

The delivery plan has eleven phases, and the first seven gates are closed:

The core lives in gameengine/src/main/java/com/guidebee/game/engine2/, with direct JVM tests passing for the model, compiler, binary format and both machines. Nothing game-specific is in the core, and that is the point: the next milestone is the first profile and host, the place where the layering either proves itself or doesn’t.

Impact and Next Steps

What this buys:

• New behavior ships as data, validated at compile time and bounded at run time.
• The spec and .e2b format, not the Java code, are the portability contract for Unity later.
• Failures are explicit, source-mapped and reproducible.

What’s next:

1. P08: the first game profile, host and adapters, and getting a real scene running end to end through the host ports.
2. Multi-owner scenes: the scene machine currently supports one bound owner per program slot.
3. Device pilot: run compiled modules on a phone and compare traces to the reference host.
4. Studio authoring: let a designer produce .e2 from a visual editor.

Conclusion

Engine 2 is a bet that game behavior is better treated as data with a contract than as code with conventions. The core is small on purpose: ordered rules, typed calls, two machines, integer ticks, hard budgets. Everything else, including every mechanic the player actually feels, stays in the game host where it can be tested like ordinary code. If the bet pays off, adding the next enemy, cutscene or even the next game is a matter of writing rules and a profile, not touching the engine.
